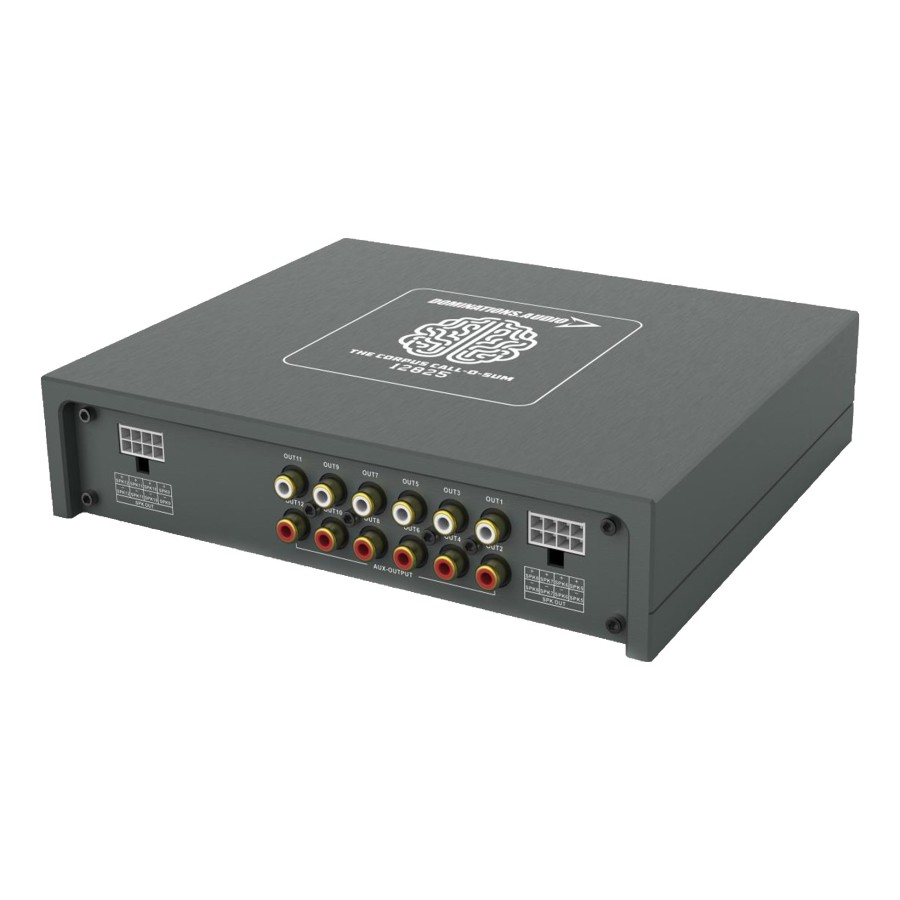

Dominations Corpus Callosum 12825

Rp 8.600.000

BARANG YANG KAMI JUAL ORIGINAL & BERGARANSI RESMI
HARGA YANG TERTERA BELUM TERMASUK BIAYA PEMASANGAN

Input signal type
10 channels high level,
2 channel low level,
Streaming music via bluetooth.
Toslink
SPDIF

Output signal type
12 channels power amplifier
12 channels low-level RCA

Option for controller and Bluetooth module.

Dynamic range >= 110 dB
S/N >= 110 dB
THD <= 0.05%
Frequency response 20 Hz - 20 kHz

Input Impedance
Low level input 20 k ohm
High level input 340 ohm

Output Impedance
Low level output 51 ohm
High level output rated power 8 x 25 W (+-1 W 10% THD)
High level output max power 8 x 60 W

Signal Input Range
Low level RCA input 7.5 Vpp
High level ouput 24 Vpp

Working Temperature -20 - 60 C

Power Rating
Voltage DC 9 V - 16 V
Current < 15 Amp

Trigger On Remote input
ACC control thru remote in
High level signal input at FL+ / FL-
Selected by switch
Trigger Out Delay remote output +12 V (0.2 A max)
Standby Power <= 0.1 W

Gross Weight Approx 1,7 kg
Product Dimension 186 (L) * 217 (W) * 47,5 (H) mm

Output volume range Mute, -59,9 dB - 0 dB
Equalizer 31 bands parametric EQ for every chanel
1. frequency range 20 Hz - 20 kHz
2. center frequency 1 Hz accuracy
3. Q factor form 0.404 - 28.85
4. Gain form -12.0 dB - +12.0 dB, 0.1 dB accuracy

Filter/crossover Each channel is equipped with a multi-stage high-low-pass independent filter.
1. filter type: butterworth, linkwitz-riley, bessel
2. Filter point: 20 Hz - 20 kHz in 1 Hz resolution
3. Filter slope: 12 dB / oct - 48 dB / oct

Time Management Phase and delay adjustment for each channel
1. Phase: in phase or out phase (0°-360°)
2. Time delay: 0.000 to 20 ms in 0.02 ms resolution, 0 to 692 cm, 0 to 273 inch

Scene operation The machine can save 6 preset music scenes.
